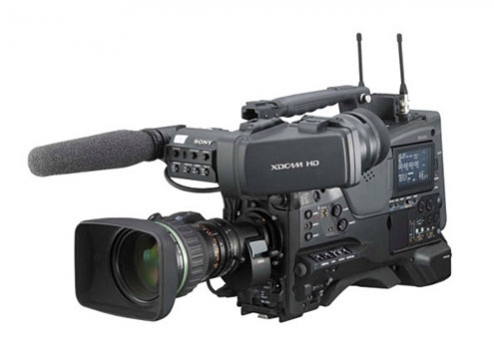

Sony first Top-of-the-range Solid State Memory Shoulder-mount XDCAM
Camcorder featuring PowerHAD FX CCD, SxS media and up to 50Mbps MPEG2
HD422 recording.
- Three 2/3-inch type Full-HD Power HAD FX CCDs
- SxS Memory Cards Combine High Transfer Speeds and High Reliability
- HD 1920x1080 and 1280x720 Recording Using the MPEG HD 422 Codec
- Well-balanced Compact Body weighing 3.4kg and Low Power Consumption at 29W
- XMPilot, new workflow via Wi-Fi
General
| Mass | 3.4kg |
|---|
| Power consumption | Approx 29W |
|---|
| Effective pixel | 1920x1080 |
|---|
| Image device | 2/3-inch Power HAD FX CCD |
|---|
| S/N | 59dB |
|---|
| Sensitivity | F12 (typical at 50i) |
|---|
| Supplied Accessories | Shoulder Strap (x1), Cold Shoe Kit (x1), Operation Manual (x1), XDCAM Browser software (x1), SxS device driver software (x1) |
|---|
Sampling
| UDF mode | 4:2:2 (50Mbps) & 4:2:0 (35Mbps only) |
|---|
| FAT mode | 4:2:0 (35Mbps, 25Mbps@1440x1080 60i/50i/23.98p) |
|---|
| Frequency | 59.94i,50i, 29.97p, 25p, 23.98p |
|---|
Recording Format (Video)
| HD422 mode | CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL |
|---|
| HQ mode | VBR, maximum bit rate: 35 Mbps, MPEG-2 MP@HL |
|---|
| SP mode | CBR, 25 Mbps, MPEG-2 MP@H-14 |
|---|
| SD mode (with optional CBK-MD01) | IMX, DVCAM |
|---|
Recording format (Audio-UDF Mode)
| HD 422 50 Mode | LPCM 24 bits, 48 kHz 4 channels |
|---|
| HD 420 HQ Mode | LPCM 16 bits, 48 kHz 4 channels |
|---|
| SD IMX Mode (with optional CBK-MD01) | LPCM 16/24 bits, 48 kHz 4 channels |
|---|
| SD DVCAM Mode (with optional CBK-MD01) | LPCM 16 bits, 48 kHz 4 channels |
|---|
Recording format (Audio-FAT Mode)
| HD Mode | LPCM 16 bits, 48 kHz 4 channels |
|---|
| SD DVCAM Mode (with optional CBK-MD01) | LPCM 16 bits, 48 kHz 2 channels |
|---|
Recording frame rate (UDF Mode)
| HD 422 50 Mode | MPEG-2 422P@HL, 50 Mbps/CBR 1920 × 1080/59.94i, 50i, 29.97P, 25P,23.98P 1280 × 720/59.94P, 50P, 29.97P, 25P, 23.98P |
|---|
| HD 420 HQ Mode | MPEG-2 MP@HL, 35 Mbps/VBR 1440 × 1080/59.94i, 50i, 29.97P, 25P,23.98P 1280 × 720/59.94P, 50P, 23.98P(PD) |
|---|
| SD IMX Mode (with optional CBK-MD01) | 720 × 486/59.94i, 29.97PsF 720 × 576/50i, 25PsF |
|---|
| SD DVCAM Mode (with optional CBK-MD01) | 720 × 480/59.94i, 29.97PsF 720 × 576/50i, 25PsF |
|---|
Recording frame rate (FAT Mode)
| HD HQ 1920 Mode | MPEG-2 MP@HL, 35 Mbps/VBR 1920 × 1080/59.94i, 50i, 29.97P, 25P,23.98P |
|---|
| HD HQ 1440 Mode | MPEG-2 MP@HL, 35 Mbps/VBR 1440 × 1080/59.94i, 50i, 29.97P, 25P,23.98P |
|---|
| HD HQ 1280 Mode | MPEG-2 MP@HL, 35 Mbps/VBR 1280 × 720/59.94P, 50P, 29.97P, 25P,23.98P |
|---|
| HD SP 1440 Mode | MPEG-2 MP@H-14, 25 Mbps/CBR 1440 × 1080 /59.94i, 50i (23.98P is converted to 59.94i in 2-3 pulldown processing.) |
|---|
| SD DVCAM Mode (with optional CBK-MD01) | 720 × 480/59.94i, 29.97PsF 720 × 576/50i, 25PsF |
|---|
Recording/Playback time (UDF Mode)
| HD 422 50/SD IMX Mode | Approx. 120 min with SBS-64G1A (64 GB) memory card Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 30 min with SBP-16 (16 GB) memory card |
|---|
| HD 420 HQ Mode | Approx. 180 min with SBS-64G1A (64 GB) memory card Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 45 min with SBP-16 (16 GB) memory card |
|---|
| SD DVCAM Mode (with optional CBK-MD01) | Approx. 220 min with SBS-64G1A (64 GB) memory card Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 55 min with SBP-16 (16 GB) memory card |
|---|
Recording/Playback time (FAT mode)
| HD HQ Mode | Approx. 200 min with SBS-64G1A (64 GB) memory card Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 50 min with SBP-16 (16 GB) memory card |
|---|
| HD SP Mode | Approx. 280 min with SBS-64G1A (64 GB) memory card Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 70 min with SBP-16 (16 GB) memory card |
|---|
| SD DVCAM Mode | Approx. 260 min with SBS-64G1A (64 GB) memory card Approx. 130 min with SBP-32 / SBS-32G1A (32 GB) memory card Approx. 65 min with SBP-16 (16 GB) memory card |
|---|
SD (MPEG IMX & DVCAM) recording/playback capability as option
| UDF | IMX 50 Mbps and DVCAM 25Mbps |
|---|
| FAT | DVCAM 25Mbps |
|---|
Slow & Quick Motion function
| 720p | 1P to 60P (1-50p in PAL area setting in UDF mode) |
|---|
| 1080p | 1P to 60P (1-50p in PAL area setting in UDF mode) |
|---|
2. PDW-539P
This rugged 4:3 XDCAM SD camcorder offers the ultimate solution for today's and tomorrow's SD video productions with a disc-based nonlinear workflow by utilising new IT technology and reliable single-layer (23GB) profession disc. It meets a diverse range of both budgetary constraints.
4:3 Power HAD EX CCDs - outstanding picture quality
12 bit A/D conversion
Rugged and ergonomic design
Advanced Digital Signal Processing
Shock and dust resistant disc drive
General
Mass Approx 4.1 kg (8 lb 13 oz) 5.7kg with VF/ Mic/ Disc/ BP-IL75 (12 lb 12 oz)
Power requirements DC 12 V +5.0 V/-1.0 V
Power consumption Approx 32 W (while recording/ including VF/ color LCD off)
Operating temperature -5 to 40 °C
Storage temperature -20 to +60 °C
Humidity 10 to 90% (relative humidity)
Continuous operating time Approx 120 min w/BP-GL95 battery
Recording Format
Video MPEG IMX (50/40/30 Mbp/s). DV-CAM (25 Mbp/s)
Proxy Video MPEG-4
Audio MPEG IMX : 4ch/16bit/48kHz or 4ch/24bit/48kHz. DV-CAM : 4ch/16bit/48kHz
Proxy Audio A-law (4ch/ 8bit/ 8kHz)
Recording/Playback time MPEG IMX: 50Mbps: 45min./ 40Mbps: 55min./ 30Mbps: 68min. - PFD23A(23.3GB) DV-CAM: 85min - PFD23A(23.3GB)
Signal inputs
Gen-Lock In (BNC) BNC x 1, 1.0 Vp-p, 75Ω
Audio input XLR-3-31 x2/ line / mic / mic+48V / AES/EBU selectable
Mic input XLR-3-3 x1
Signal Outputs
Video output BNC x 1, 1.0 Vp-p, 75Ω
Video test output BNC x 1, 1.0 Vp-p, 75Ω
Earphone Minijack x2 (front: monaural/ rear: monaural/stereo)
Audio output (CH-1/CH-2) XLR-5-pin male (stereo)
Other Inputs/ Outputs
Time code input BNC x 1
Time code output BNC x 1, 1.0 Vp-p, 75Ω
Lens 12-pin
Remote 8-pin
Light 2-pin/ DC 12 V/ max 50 W
DC input XLR-4-pin
DC output 4-pin (for wireless microphone receiver)/ DC 12 V (MAX 0.2A)
Camcorder adapter 40-pin
i-LINK 6-pin/ AV/C or SBP2
Memory Stick Memory Stick Pro (max. capacity 2GB)
Audio Performance
A/D and D/A quantization A/D: 20 bits/sample/ D/A: 16 bits/sample
Frequency response 20 Hz to 20 kHz/ +0.5 dB/-1.0 dB
Dynamic range More than 85 dB
Distortion Less than 0.08% (at 1 kHz/ reference level)
Cross talk Less than -70 dB (at 1 kHz/ reference level)
Wow & flutter Below measurable limit
Head room 20 dB (ex-factory setting)
Camera Section
Pickup device 3-chip 2/3-inch type 16:9 widescreen Power HAD EX Charge Coupled Device
Total picture elements (Effective picture elements) 1038(H) x 1188(V) (980(H) x 582(V))
Optical system F1.4 prism
Built-in optical filters 1: 3200K, 2: 5600K + 1/8 ND, 3: 5600K, 4: 5600K + 1/64 ND
Shutter speed 1/60/ 1/125/ 1/250/ 1/500/ 1/1000/ 1/2000 sec
Slow Shutter (SLS) 2/3 to 1/25 sec (1 to 8 and 16 Frame accumlation)
Lens mount 2/3" 48 bayonet mount
Sensitivity (2000 lx, 89.9% reflectance) F11
Minimum illumination Approx 0.13 lx (F14 lens/ +48 dB turbo gain/ Shutter off)
Gain selection -3dB/ 0dB/ 3dB/ 6dB/ 9dB/ 12dB/ 18dB/ 24dB/ 30dB/ 36dB/ 42dB/ 48dB
Smear level -140 dB (typical)
S/N ratio -63 dB (typical)
Vertical resolution 480 TV Lines/530 TV Lines(EVS)
Registration 0.05% (all zones/ w/o lens)
Geometric distortion Below measurable level (w/o lens)
Modulation depth at 5MHz 70%
Viewfinder
CRT 1.5 inch 4:3 monochrome
Controls BRIGHT/CONTRAST/PEAKING controls/TALLY/ZEBRA/DISPLAY switches
Resolution (Horizontal) 450 TV lines
Microphone Ultra-directional (detachable)
Built in Output Devices
LCD monitor 2.5-inch type Color LCD monitor
Supplied Accessories
Microphone Monaural microphone
Lens protection Lens cap
Viewfinder 2 inch monochrome viewfinder
Mounting options Shoulder belt
Documentation Operation manual
3. PDW-510P
This XDCAM SD camcorder offers the ultimate solution for today's and tomorrow's SD video productions with a disc-based nonlinear workflow by utilising new IT technology and reliable single-layer (23GB) profession disc. This meets a diverse range of both workflow requirements and budgetary constrains
16:9/4:3 Switchable Power HAD™ EX CCDs
50i or 25p capture
Compact, Lightweight Body
25Mbps DV-CAM recording
Shock- and Dust-Resistant Disc Drive
General
Models available PAL version: PDW-510P NTSC version: PDW-510
Mass Approx 4.1 kg (8 lb 13 oz) 5.8kg with VF/ Mic/ Disc/ BP-IL75 (12 lb 12 oz)
Power requirements DC 12 V +5.0 V/-1.0 V
Power consumption Approx 37 W (while recording/ including VF/ color LCD off)
Operating temperature -5 to 40 °C
Storage temperature -20 to +60 °C
Humidity 25 to 85% (relative humidity)
Continuous operating time Approx 90 min w/BP-IL75
Recording Format
Video DV-CAM (25 Mbp/s)
Proxy Video MPEG-4
Audio DV-CAM : 4ch/16bit/48kHz
Proxy Audio A-law (4ch/ 8bit/ 8kHz)
Recording/Playback time DV-CAM: 85min - PFD23A (23.3GB)
Signal Inputs
Gen-Lock In (BNC) BNC x 1, 1.0 Vp-p, 75Ω
Audio input XLR-3-31 x2/ line / mic / mic+48V / AES/EBU selectable
Mic input XLR-3-3 x1
Signal Outputs
Video output BNC x 1, 1.0 Vp-p, 75Ω
Video test output BNC x 1, 1.0 Vp-p, 75Ω
Earphone Minijack x2 (front: monaural/ rear: monaural/stereo)
Audio output (CH-1/CH-2) XLR-5-pin male (stereo)
Other Inputs / Outputs
Time code input BNC x 1
Time code output BNC x 1, 1.0 Vp-p, 75Ω
Lens 12-pin
Remote 8-pin
Light 2-pin/ DC 12 V/ max 50 W
DC input XLR-4-pin
DC output 4-pin (for wireless microphone receiver)/ DC 12 V (MAX 0.2A)
Camcorder adapter 40-pin
i-LINK 6-pin/ AV/C or SBP2
Audio Performance
A/D and D/A quantization A/D: 20 bits/sample/ D/A: 16 bits/sample
Frequency response 20 Hz to 20 kHz/ +0.5 dB/-1.0 dB
Dynamic range More than 85 dB
Distortion Less than 0.08% (at 1 kHz/ reference level)
Cross talk Less than -70 dB (at 1 kHz/ reference level)
Wow & flutter Below measurable limit
Head room 20 dB (ex-factory setting)
Camera Section
Pickup device 3-chip 2/3-inch type 16:9 widescreen Power HAD EX Charge Coupled Device
Total picture elements (Effective picture elements) PDW-510P: 1038(H) x 1188(V) (980(H) x 582(V)) PDW-510: 1038(H) x 1008(V) (980(H) x 494(V))
Charge Coupled Device scan mode Interlace scan/Progressive scan
Optical system F1.4 prism
Built-in optical filters 1: Clear/ 2: 1/4ND/ 3: 1/16ND/ 4: 1/64ND A: CROSS/ B: 3200K/ C: 4300K/ D: 6300K
Shutter speed PDW-510P: 1/60/ 1/125/ 1/250/ 1/500/ 1/1000/ 1/2000 sec PDW-510: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec
Slow Shutter (SLS) PDW-510P: 1/2 to 1/25 sec (1 to 16 Frame accumlation) PDW-510: 1/2 to 1/30 (s) (1 to 16 Frame accumlation)
Lens mount 2/3" 48 bayonet mount
Sensitivity (2000 lx, 89.9% reflectance) F11
Minimum illumination Approx 0.13 lx (F14 lens/ +48 dB turbo gain/ Shutter off)
Gain selection -3dB/ 0dB/ 3dB/ 6dB/ 9dB/ 12dB/ 18dB/ 24dB/ 30dB/ 36dB/ 42dB/ 48dB
Smear level -140 dB (typical)
S/N ratio PDW-510P: -63 dB (typical) PDW-510: -65 dB (typical)
Vertical resolution PDW-510P: 480 TV Lines/530 TV Lines(EVS) PDW-510: 400 TV Lines/450 TV Lines(EVS)
Registration 0.05% (all zones/ w/o lens)
Geometric distortion Below measurable level (w/o lens)
Modulation depth at 5MHz 70% (16:9/ typical) /55%(4:3/ typical)
Viewfinder
CRT 2 inch monochrome
Controls BRIGHT/CONTRAST/PEAKING controls/TALLY/ZEBRA/DISPLAY switches
Resolution (Horizontal) 450 TV lines (16:9)
Microphone Ultra-directional (detachable)
Built in Output Device
LCD Monitor 2.5-inch type Color LCD monitor
Supplied Accessories
Microphone Monaural microphone
Lens protection Lens cap
Software PDZ-1 proxy browsing software, MXF proxy viewer software
Viewfinder 2 inch monochrome viewfinder
Mounting options Shoulder belt
Documentation Operation manual
4. PDW-700
This premium XDCAM HD422 camcorder offers amazing HD quality at data rates of up to 50 Mb/s using MPEG-2 4:2:@ P @HL compression technology. This is ideal for applications such as news gathering, where speed is a key concern and the high quality makes it equally at home for TV dramas, documentaries
Three 2/3-inch type Power HAD FX CCDs, each with 1920 x 1080 effective pixels
HD recording at up to 50 Mb/s using MPEG HD422 (MPEG-2 4:2:2P@HL compression technology)
High-quality four-channel audio recording
Dual HD/SD-SDI outputs and composite/HD-Y output
Ethernet interface (100Base-TX)
General
Mass Approx. 4.3kg: Main body only Approx. 6kg incl. VF, Mic, Disc, BP-GL95 battery
Power requirements DC 12 V
Power consumption Approx. 40W - Condition: while recording powered by a battery in SAVE mode (VDR), w/o VF, w/ LCD ON (L mode) Approx. 44W - Condition: while recording powered by a battery in SAVE mode (VDR), w/ HDVF-20A (VF), w/ ECM-680S (Mic.), w/ lens, w/ LCD ON (L mode)
Operating temperature -5 to 40 °C
Storage temperature -20 to +60 °C
Humidity 10 to 90% (relative humidity)
Dimensions (W x H x D) 124 x 269 x 332 mm
Camera Section
Pickup device 2/3-inch type, 3 chip, 1920(H) x 1080(V) w/ New imager block of PowerHAD FX
Charge Coupled Device scan mode Interlace scan/Progressive scan
Optical system F1.4 prism system (with quartz filter)
Lens mount 2/3-inch type 48 bayonet mount
Sensitivity (2000 lx, 89.9% reflectance) F11
Minimum illumination 0.016 lx (F1.4 lens, +42dB, 16Frame)
S/N ratio 54dB (at noise suppressor: OFF)
Modulation depth at 21MHz more than 45% (at screen centre)
Registration Within 0.02% (all zones, without lens)
Geometric distortion None identified
Smear level -135 dB or less
A/D conversion 14bit quantization
Built-in optical filters 1:Clear 2:1/4ND 3:1/16ND 4:1/64ND
Built-in CC filters (Electric) A:3200K B:4300K C:5600K D:6300K
Shutter speed 59.94i/p: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 50i/p: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000
ECS 59.94i/p: 60.0 to 4,300Hz 50i/p: 50.0 to 4,700Hz
Slow Shutter (SLS) 59.94i/p: 1Frame (1/30) to 16Frame (16/30) 50i/p: 1Frame (1/25) to 16Frame (16/25)
Recording Format
Video DV-CAM (25 Mb/s) MPEG HD (MPEG-2 MP@HL) HQ mode (VBR, maximum bitrate : 35Mb/s) SP mode (CBR 25Mb/s) LP mode (VBR, maximum bitrate : 18Mb/s) MPEG HD422 (MPEG-2 422P@HL)
Proxy Video MPEG-4
Audio MPEG HD422: 4 ch/24 bits/48kHz MPEG HD: 4ch or 2ch, 16 bits/48kHz DVCAM: 4ch, 16 bits/48kHz
Proxy Audio A-law (4ch / 2ch, 8bit, 8kHz)
Recording/Playback time -PFD50DLA (50 GB) DV-CAM approx. 185 min. HQ mode Audio 2ch: >150 min. Audio 4ch: >145 min. SP mode Audio 2ch: approx. 200 min. Audio 4ch: approx. 190min. LP mode Audio 2ch: >265 min. Audio 4ch: >248 min.
Recording/Playback time -PFD23A (23.3 GB) DV-CAM approx. 85 min. HQ mode Audio 2ch: >68 min. Audio 4ch: >65 min. SP mode Audio 2ch: approx. 90 min. Audio 4ch: approx. 85min. LP mode Audio 2ch: >122 min. Audio 4ch: >112 min.
Video Specifications
Sampling frequency Y:74.176MHz(59.94i) / 74.25MHz (50i) PB/PR:37.088MHz(59.94i) / 37.125MHz(50i)
Quantization 8bit
Audio Performance
Frequency response 20Hz to 20kHz -1.0dB
Quantization 24bit (MPEG-2 4:2:2P@HL, MPEG IMX 4ch) 16bit (MPEG-2 MP@HL, MPEG IMX 8ch, DVCAM)
Number of record channels 4ch
Head room 20/18/16/12dB
Dynamic range 93dB min.
Distortion (THD) 0.08% max.
Cross talk -70dB max.
Wow and flutter Below measurable limit
Signal Inputs
Gen-Lock In (BNC) HD Tri-Level Sync Composite (V.B.S.)
Video In (BNC) HD SDI (optional) SD SDI (optional) SD Composite (optional over Gen-lock In BNC)
Front Mic In (XLR 5pin) Mono Stereo
Audio input Ch-1/Ch-2 (XLR 3pin) Line Mic AES (4ch)
Wireless Mic Receiver In Slot-in
Signal Outputs
Test Out (BNC) HD Y SD Composite (Chara. On/Off)
SDI output Video Out 1/2 (BNCx2) BNC x1, HD-SDI SMPTE 292M (w/ embedded audio) SD-SDI: SMPTE 259M (w/embedded audio)
Audio output (CH-1/CH-2) Stereo Monitor (XLR 5pin)
Earphone (Front) Mini-jack x1 (mono)
Earphone Mini-jack x1 (stereo)
Other Inputs / Outputs
i.Link 6pin (Lock) FAM SAM
Ethernet 100Base-T,RJ-45 FTP
USB Maintenance use Proxy Recording on USB Memory (future development)
Time code input BNC x1, 0.5 to 18 Vp-p, 10 kΩ
Time code output BNC x1, 1.0 Vp-p, 75 Ω
DC +12V In XLR 4pin
DC +12V Out (4pin) 0.5A max.
Light (2pin) 50W max.
Lens 12pin
HD Viewfinder BC type
Remote 8pin
Built-in Output Devices
LCD monitor 3.5 inches colour w/back light
LCD panel for Timecode Black and white w/back light
Supplied Accessories
Lens protection Lens mount cap
Mounting options Shoulder strap
Cables Mic cable (Conversion 3 pin - 5 pin)
Documentation Operation manual, CD-ROM manual
Software PDZ-1 proxy browsing software
Tidak ada komentar:
Posting Komentar
